Supposed availability: 10 days
Weight: 0,100 kg

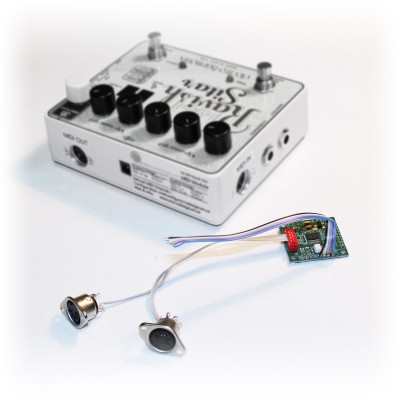

This small electronic kit facilitates controlling Ravish Sitar using foot MIDI controller or from computer by DAW software.
How it works
How to install the module
1) See the video with the installation of similar MIDI module for EHX POG2:
Â
2) The soldering points for the power supply +9V and GND are here:

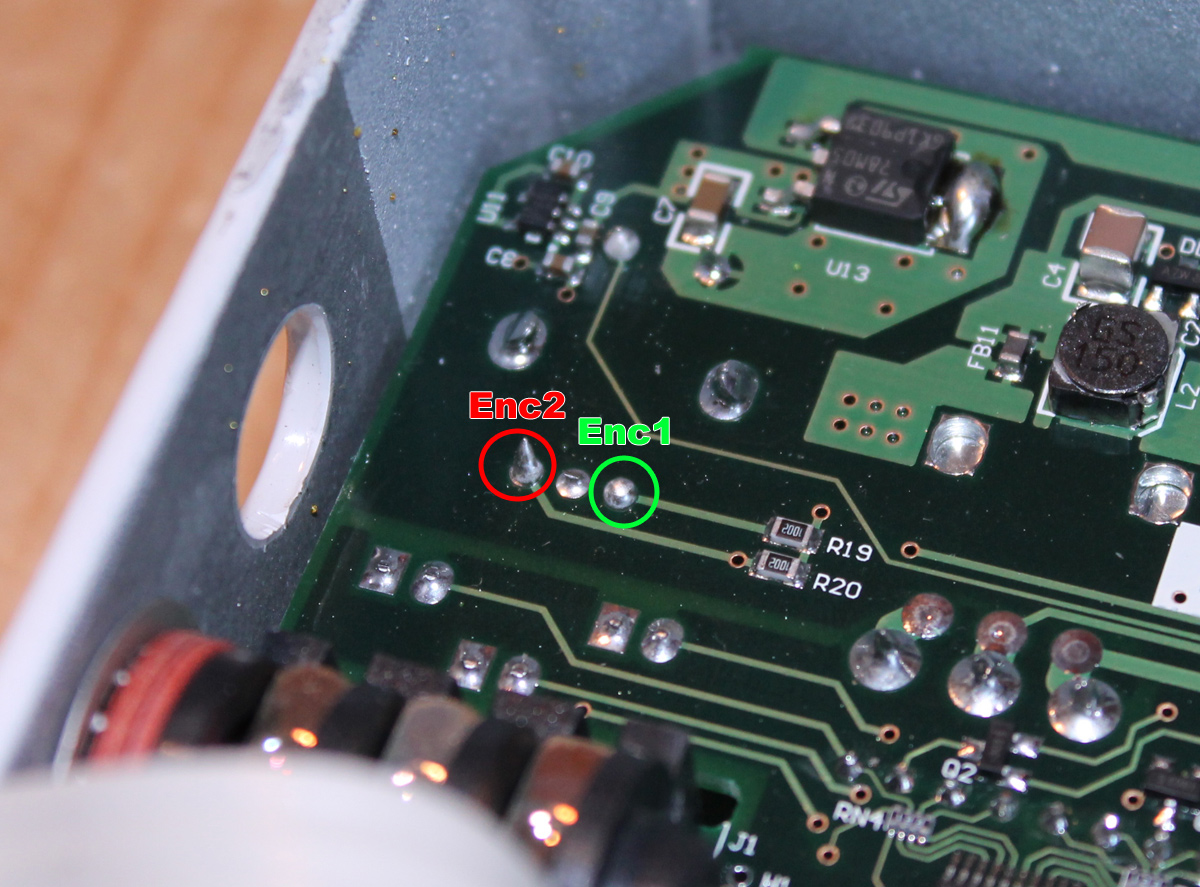

3) The soldering points for encoder Enc1 and Enc2 are here:

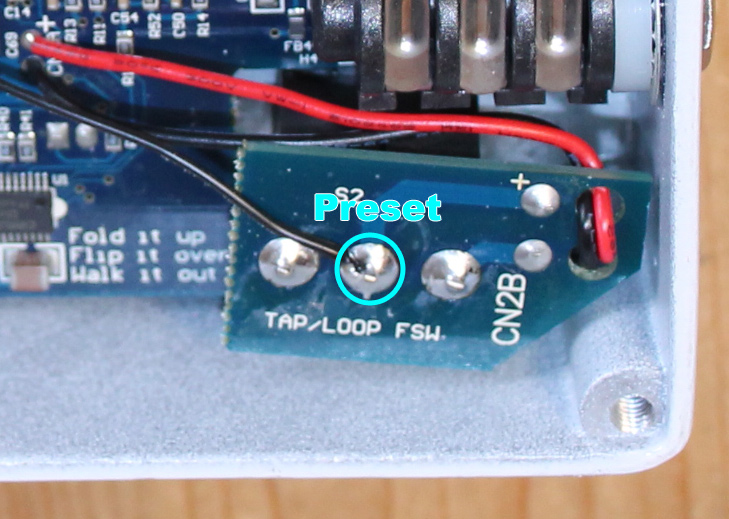

4) The soldering point for Preset is here:
5) Drill the MIDI IN hole here:

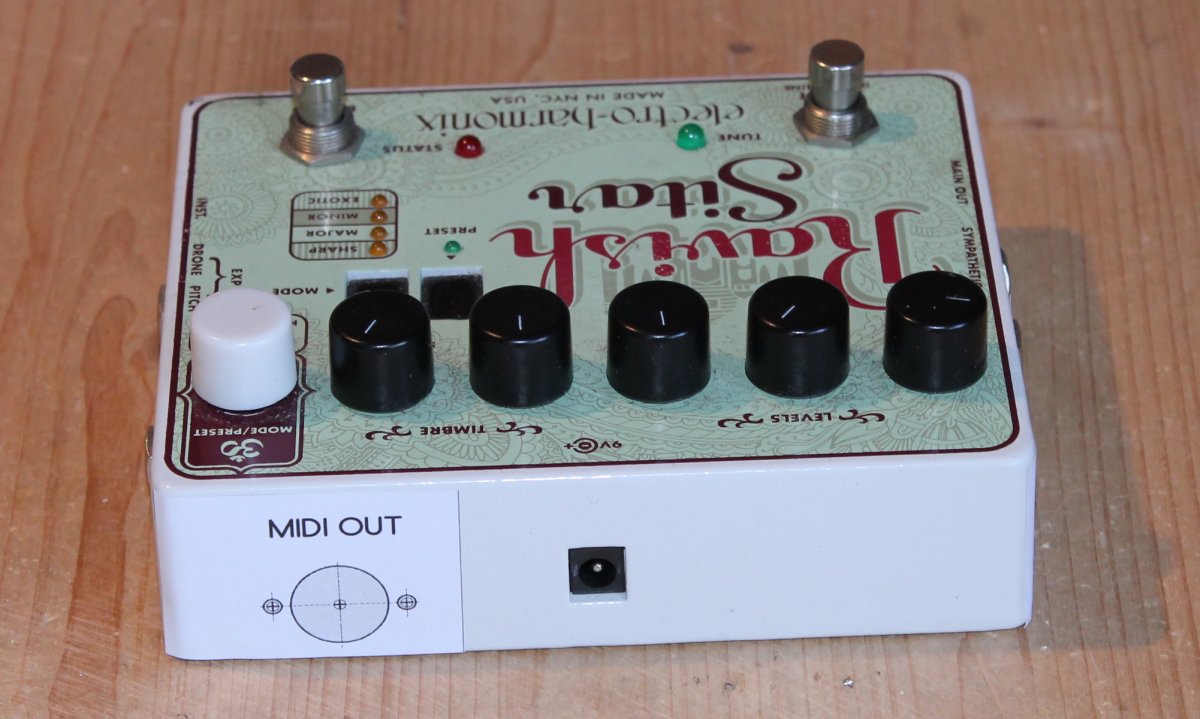

6) Drill the MIDI OUT hole here:
Parameters
Property | Value |
---|---|
Target guitar effect: | EHX Ravish Sitar |
Variant: | module |
Controled parameters: | programs only |
Microdesignum.cz > Products > MIDI Modules > MIDI Control for Electro Harmonix Ravish Sitar
MIDI Modules
Using our electronic MIDI modules, some guitar pedals can be controlled by Program Change
or Control Change
MIDI messages. The principle of operation is that the installed control MIDI module electronically simulates turning and pressing control knobs or encoders and replaces an activity which would have to be carried out during the guitar playing.
Install services
We also provide install services of the modules in our location in the Czech Republic (Central Europe). We also have our partners in the USA, Canada, Australia and France that are able to provide the install services for you. » See the list of our partners.
