MIDI module for EHX Cathedral MIDI module for build into the Electro Harmonix Cathedral Stereo Reverb guitar effect

Měna
MIDI module for EHX Cathedral
Category: MIDI Modules
Price: 65.00 USD
Quantity discounts:
Quantity Price
2 63.70 USD
3 63.05 USD
4 62.40 USD
5 61.75 USD
10 58.50 USD
Quantity:

Supposed availability: 13 days

Weight: 0,100 kg

Order code: MPR-EHX-CAT-MOD


This small electronic kit facilitates controlling Electro Harmonix Cathedral Stereo Reverb using MIDI controller or from computer by DAW software. It switches PRESETS and TAP/INFINITE functionality.

Parameters

Property Value
Target guitar effect: EHX Cathedral
Variant: module
Controled parameters: programs, tap
Catalog
Detailed product information:
Microdesignum.cz > Products > MIDI Modules > MIDI Control for Electro Harmonix Cathedral Stereo Reverb


Photogallery Photogallery

Photogallery How to install MIDI module into EHX Cathedral Stereo Reverb

23.05.2016 15:00

Number of photos in the gallery: 37

Purchase the MIDI mod in our eshop
Purchase the MIDI mod in our eshop
Open the box
Open the box
Cathedral is opened
Cathedral is opened
Self-adhesive labels
Self-adhesive labels
Self-adhesive label for MIDI IN
Self-adhesive label for MIDI IN
Self-adhesive label for MIDI OUT
Self-adhesive label for MIDI OUT
Pre-drill the MIDI IN holes with a ø2mm drill
Pre-drill the MIDI IN holes with a ø2mm drill
Pre-drill the MIDI OUT holes with a ø2mm drill
Pre-drill the MIDI OUT holes with a ø2mm drill
Pre-drilled holes
Pre-drilled holes
You can optionally pre-drill the main hole also with a ø3mm drill
You can optionally pre-drill the main hole also with a ø3mm drill
Secure attachment
Secure attachment
Use step drill for drilling the ø16mm hole
Use step drill for drilling the ø16mm hole
The ø16mm hole is drilled
The ø16mm hole is drilled
Take off the stickers
Take off the stickers
Drill the two ø3.5 mm holes
Drill the two ø3.5 mm holes
Chamfer
Chamfer
The holes for MIDI IN connector are ready
The holes for MIDI IN connector are ready
Drill the same holes for MIDI OUT connector on the other side
Drill the same holes for MIDI OUT connector on the other side
Clean the surface
Clean the surface

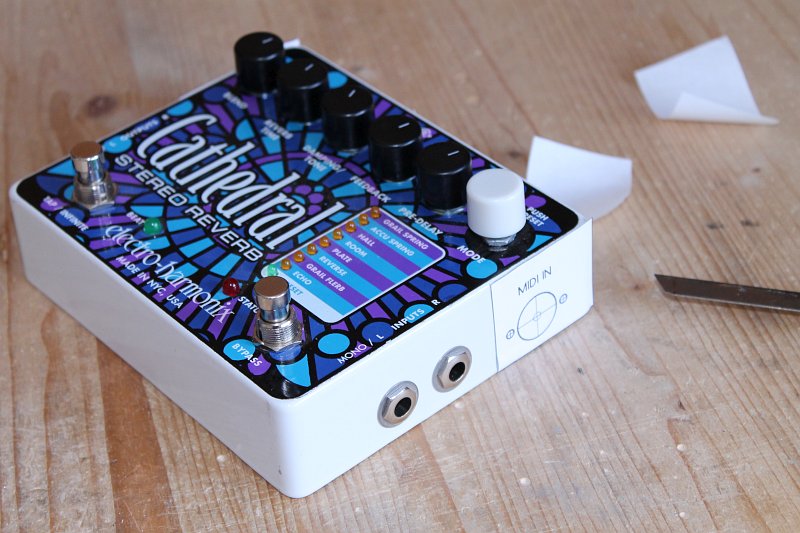

Affix the sticker with MIDI IN to the signal inputs side
Affix the sticker with MIDI IN to the signal inputs side
Affix the sticker with MIDI OUT to the signal outputs side
Affix the sticker with MIDI OUT to the signal outputs side
Draw the drilling points on the bottom lid
Draw the drilling points on the bottom lid
Drilling points on the bottom lid
Drilling points on the bottom lid
Drill the ø3.0 mm or ø3.2 mm holes
Drill the ø3.0 mm or ø3.2 mm holes
Here are the six soldering points
Here are the six soldering points
Put more solder to the soldering points
Put more solder to the soldering points

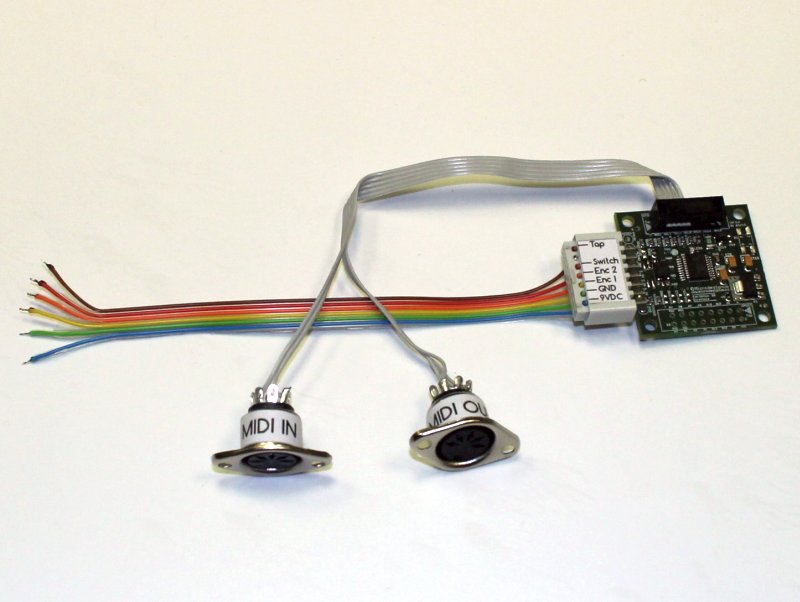

Regardless of the colors of the conductors, solder 9VDC and GND conductors near the voltage regulator.
Regardless of the colors of the conductors, solder 9VDC and GND conductors near the voltage regulator.
Regardless of the colors of the conductors, solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push
Regardless of the colors of the conductors, solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push
Regardless of the color of the conductors, solder the Tap conductor.
Regardless of the color of the conductors, solder the Tap conductor.
Screw the MIDI IN connector to the side of the Guitar In connectors
Screw the MIDI IN connector to the side of the Guitar In connectors
Screw the MIDI OUT connector to the side of the Effect Out connectors
Screw the MIDI OUT connector to the side of the Effect Out connectors
Insert spacers
Insert spacers
Spacers screwed by nuts
Spacers screwed by nuts
Screw the MIDI module to the bottom lid
Screw the MIDI module to the bottom lid
The MIDI module is screwed to the bottom lid
The MIDI module is screwed to the bottom lid
Affix the sticker with description
Affix the sticker with description

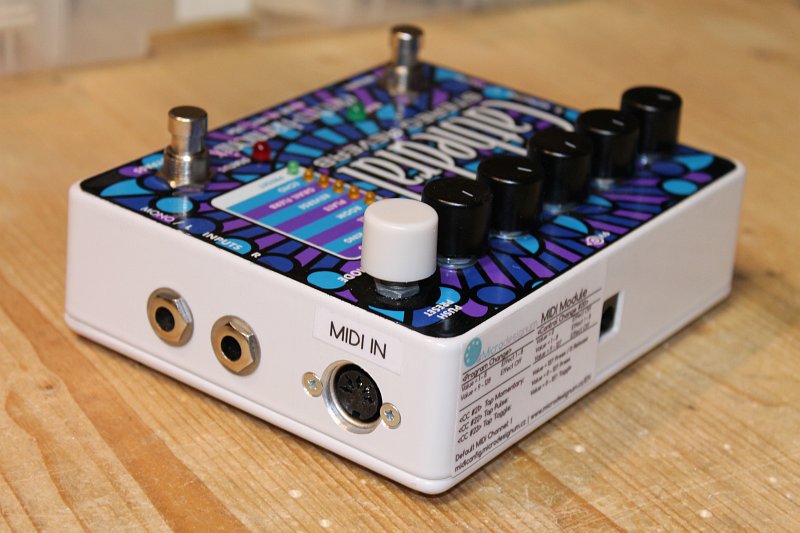

Enjoy controlling the Cathedral Stereo Reverb by a MIDI controller
Enjoy controlling the Cathedral Stereo Reverb by a MIDI controller


Related and similar products

MIDI module for EHX POG2
MIDI module for EHX POG2
65.00 USD
MIDI module for EHX Ring Thing
MIDI module for EHX Ring Thing
65.00 USD
MIDI module for EHX Ravish Sitar
MIDI module for EHX Ravish Sitar
65.00 USD

Question Question

Do you have any questions about this product?







MIDI Modules

Using our electronic MIDI modules, some guitar pedals can be controlled by Program Change or Control Change MIDI messages. The principle of operation is that the installed control MIDI module electronically simulates turning and pressing control knobs or encoders and replaces an activity which would have to be carried out during the guitar playing.

Install services

We also provide install services of the modules in our location in the Czech Republic (Central Europe). We also have our partners in the USA, Canada, Australia and France that are able to provide the install services for you. » See the list of our partners.
