MIDI Grande 5F1D Universal MIDI controller with 5 footswitches and 4-digit LED display.

MIDI Grande 5F1D
Category: MIDI Controllers
Price: 235.00 USD
Quantity discounts:
Quantity Price
2 230.30 USD
3 227.95 USD
4 225.60 USD
5 223.25 USD
10 211.50 USD

Supposed availability: 10 days

Weight: 0,700 kg

Order code: MG-5F1D
Tags: MIDI controllers

Microdesignum MIDI Grande is a family of universal and beautiful foot MIDI controllers. They transmit MIDI messages Program ChangeControl Change and/or synchronization commands (SyncStartContinueStop) to a guitar amp, effect or effect processor, which respond by switching to a different sound, channel, etc. They are built with emphasis on easy to use buttons, as well as swift programming and mechanical durability. They work with any gear that is controllable via MIDI. The blue backlight allows comfortable operating even in the dark. They accept phantom power supply and they can be connected to a rack by a single cable.

MIDI Grande 5F1D

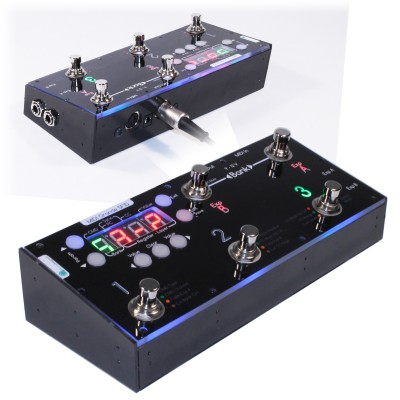

This model MIDI Grande 5F1D has 5 footswitches, 3 of them are for registers and 2 for banks switching. Each register (footswitch) has 2 layers: some MIDI messages can be programmed on the first press (red layer), other commands on the second press (green layer) of a register. Each layer can have programmed up to 8 MIDI messages. Each message can be sent on different MIDI channel. The registers can be globally configured to Program, Stompbox, Momentary, Down or Up mode. It has 32 banks.

Two expression pedals can be connected and fully programmed in each layer: CC number, channel, min and max. The pedals can be globally calibrated for correct computing the full range.

MIDI Grande 5F1D

MIDI Grande controllers can communicate bidirectionally with Kemper Profiling Amplifier, Axe-FX and G-Major: it can visualise the tuner results received from one of these three guitar processors.

A web-based manual is available and many text or video tutorials are on our MIDI Grande forum. Custom adjustments are also possible.

Dimensions: 206×86×45 mm (60 mm with the height of footswithches)


Property Value
Model line: MIDI Grande
Number of footswitches: 5
Number of displays: 1
EtherCon connector: no
Number of pedals: 0
Detailed product information:
Microdesignum.cz > Products > MIDI Controllers > Universal MIDI controllers MIDI Grande
Question Question

Do you have any questions about this product?



MIDI Controllers

MIDI controllers are electronic devices for controlling musical equipment. Most of our MIDI controllers are controled by foots - they have footswitches for controlling especially guitar gear during a live prerformance.
