5) "Safiros Mux 16" board (How to install MIDI module in EHX x9 pedals)

25.04.2019

Solder a component with 10 pins

Connect the red connector to "Safiros Mux 16" component. The tip on the plug to the hole on the board!
Connect the red connector to "Safiros Mux 16" component. The tip on the plug to the hole on the board!

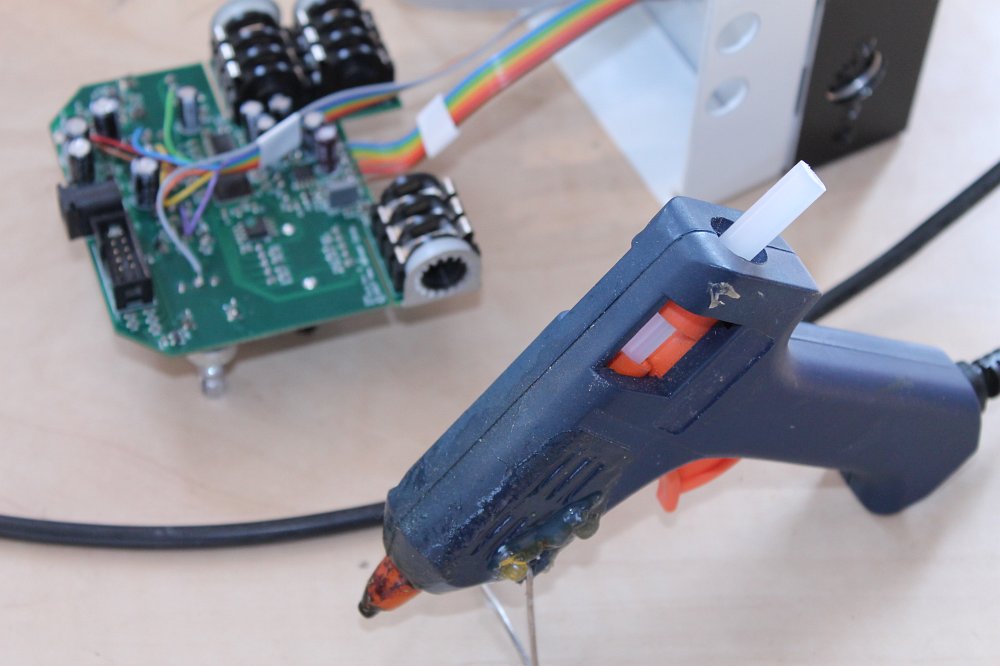

Prepare hot melt adhesive gun.
Prepare hot melt adhesive gun.
Power supply and potentiometers wires are soldered.
Power supply and potentiometers wires are soldered.
Arrange the ribbon cable.
Arrange the ribbon cable.
Glue on the ribbon cable and capacitors or other components on the board.
Glue on the ribbon cable and capacitors or other components on the board.

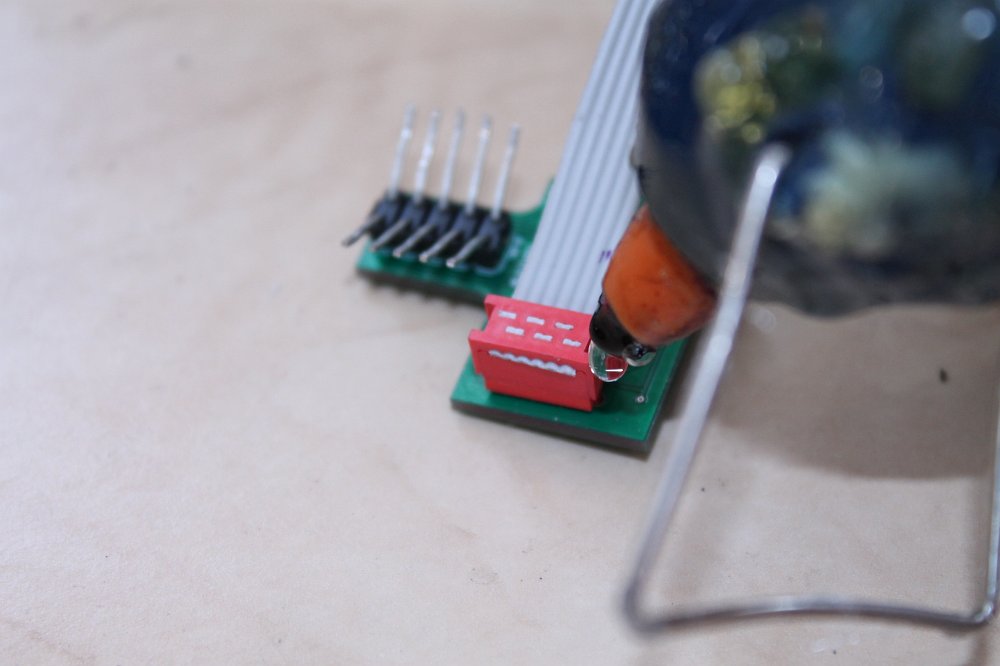

Glue on the plug and socket of the Safiros board.
Glue on the plug and socket of the Safiros board.
Glue on the plug and socket of the Safiros board.
Glue on the plug and socket of the Safiros board.
Wait a while until the hot melt adhesive cools down.
Wait a while until the hot melt adhesive cools down.
Cut only this one pin of the programs selector.
Cut only this one pin of the programs selector.
The pin of the programs selector is interrupted.
The pin of the programs selector is interrupted.
Continue with connected Safiros Mux 16 board.
Continue with connected Safiros Mux 16 board.
Attach the "Safiros Mux 16" board on the pads of the programs selector.
Attach the "Safiros Mux 16" board on the pads of the programs selector.
Hold the board and solder the "0" pin.
Hold the board and solder the "0" pin.
Hold the board and solder the "5" pin.
Hold the board and solder the "5" pin.
Solder the rest of the pins.
Solder the rest of the pins.
The Safiros component is soldered.
The Safiros component is soldered.
All 10 pins must be soldered carefully.
All 10 pins must be soldered carefully.
