4) Potentiometers (How to install MIDI module in EHX x9 pedals)

24.04.2019

Cut the wipers of 4 potentiometers and solder 4 input and 4 output wires.

Cut the middle pin of each potentiometer.
Cut the middle pin of each potentiometer.
The wiper pin is interrupted.
The wiper pin is interrupted.

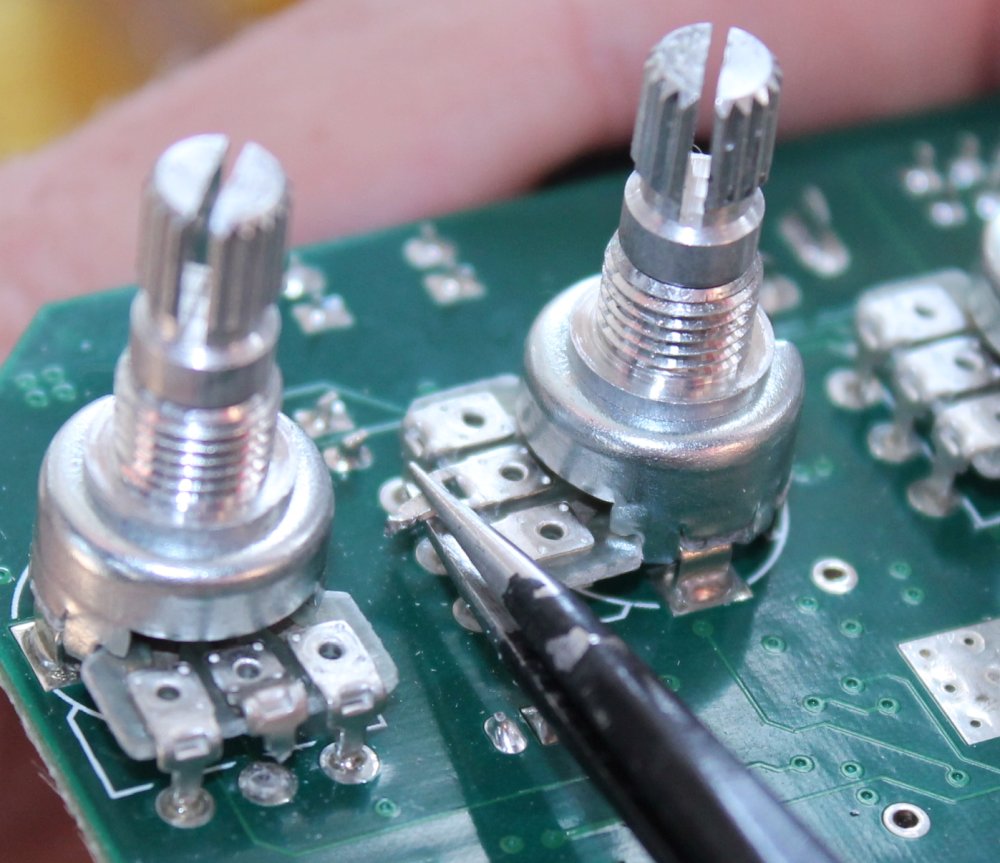

Spiked enough splitting pliers are the best to cut the other middle pins of the potentiometers.
Spiked enough splitting pliers are the best to cut the other middle pins of the potentiometers.
Ensure that the pin is not connected with the pad anymore - straighten it.
Ensure that the pin is not connected with the pad anymore - straighten it.
The wiper pins are interrupted.
The wiper pins are interrupted.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.
Put more solder on the potentiometer wiper pins.

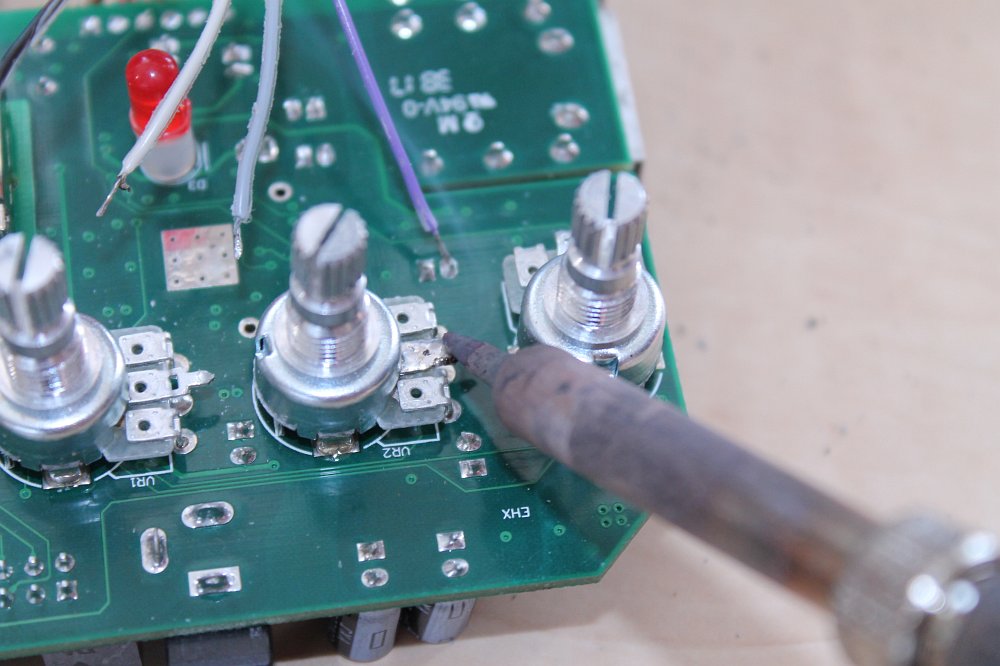

Solder the wires on the potentiometer wiper pins.
Solder the wires on the potentiometer wiper pins.
Potentometer wipers are connected.
Potentometer wipers are connected.

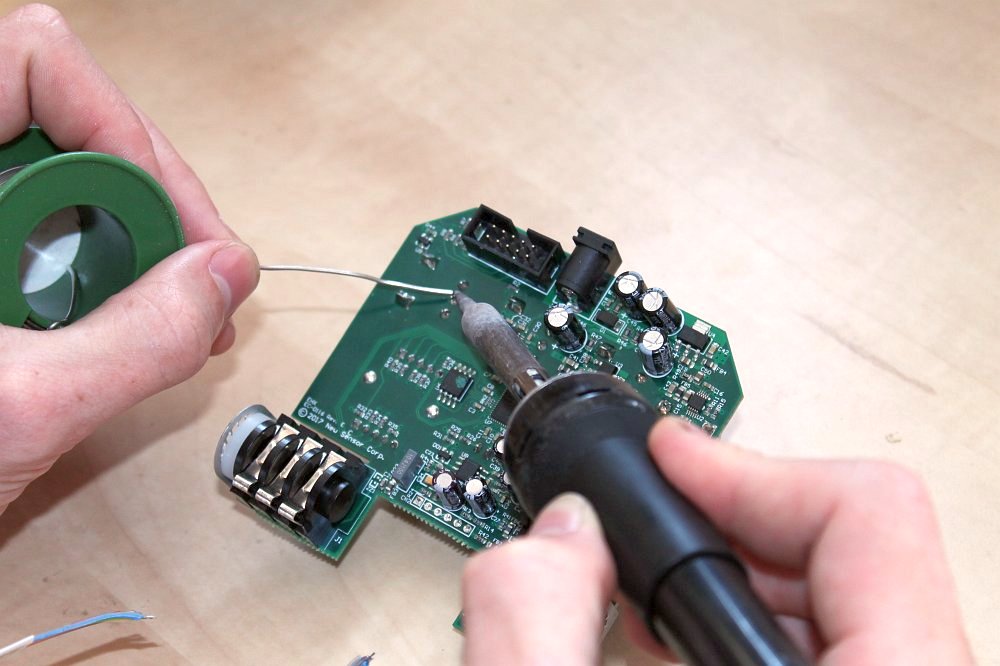

Put more solder on the wiper pads and power supply soldering points.
Put more solder on the wiper pads and power supply soldering points.
Take W1 - W4 ribbon cable
Take W1 - W4 ribbon cable
Solder W1 - W4 digital wipers. They are in the middle of each triplet pads under each potentiometer.
Solder W1 - W4 digital wipers. They are in the middle of each triplet pads under each potentiometer.
Optionally glue the cables with hot melt adhesive.
Optionally glue the cables with hot melt adhesive.
