How to install MIDI module into POG2: 2) Bypass cables

01.03.2021

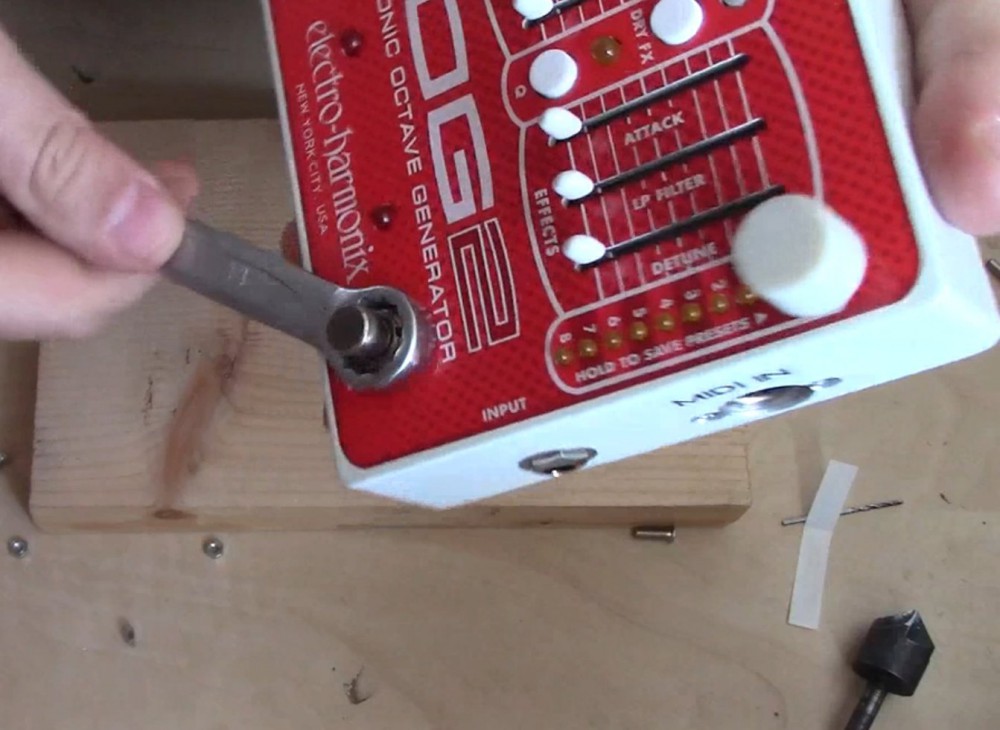

Screw the original bypass footswitch out.
Screw the original bypass footswitch out.
Simply cut the original footswitch out.
Simply cut the original footswitch out.
Solder the 6 conductors. The first is pad is square.
Solder the 6 conductors. The first is pad is square.
Insert the new footswitch with the first washer to the hole.
Insert the new footswitch with the first washer to the hole.
Tighten the nut with the second washer with a 14 mm wrench.
Tighten the nut with the second washer with a 14 mm wrench.
