MIDI module for EHX Ring Thing
Category: MIDI Modules
Price: 65.00 USD

Availability: temporarily unavailable

Automatic notification of the availabilityDo you want to be notified directly when the product is available? We will send you a report on this. Once the product is available, a message will be sent to you automatically and your e-mail will be deleted from our database. This registration does not commit you to buy this product.


Weight: 0,100 kg

Order code: MPR-EHX-RT-MOD

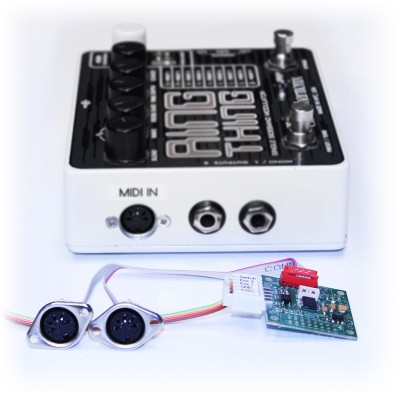

This small electronic kit facilitates controlling Ring Thing using foot MIDI controller or from computer by DAW software.

Parameters

Property Value
Target guitar effect: EHX Ring Thing
Variant: module
Controled parameters: programs only
Catalog
Detailed product information:
Microdesignum.cz > Products > MIDI Modules > MIDI Control for Electro Harmonix Ring Thing


Photogallery Photogallery

Photogallery How to install MIDI module into EHX Ring Thing

21.02.2019 13:00

Number of photos in the gallery: 18

Open the lid of the EHX TingThing pedal
Open the lid of the EHX TingThing pedal
Dismount the EXP socket
Dismount the EXP socket

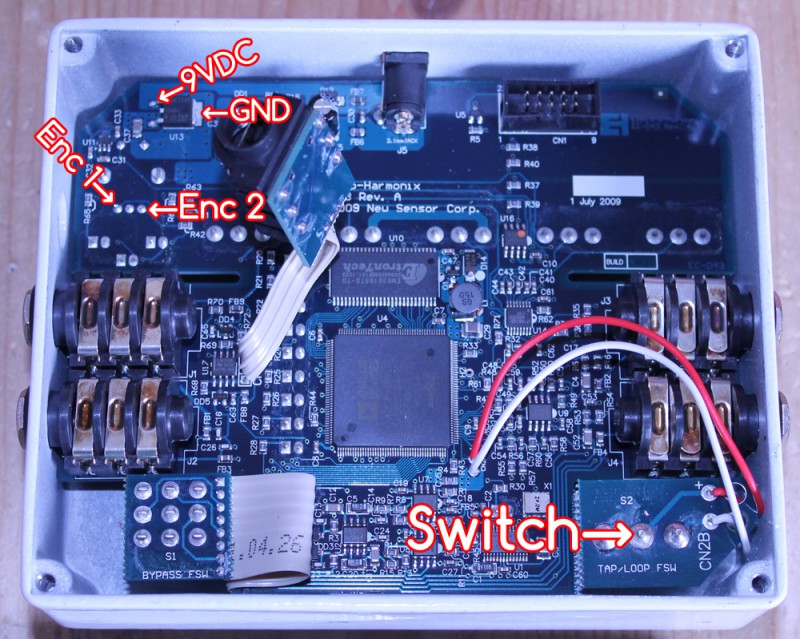

Soldering points: Enc 1, Enc 2, 9VDC, GND. Put more solder there and solder the appropriate wires from the module.
Soldering points: Enc 1, Enc 2, 9VDC, GND. Put more solder there and solder the appropriate wires from the module.
Soldering point: Switch. Put more solder there and solder the appropriate wire from the module.
Soldering point: Switch. Put more solder there and solder the appropriate wire from the module.
Prepare for MIDI IN drilling
Prepare for MIDI IN drilling
Drill ø2 mm holes
Drill ø2 mm holes
Drill ø16 mm hole
Drill ø16 mm hole
Drill ø3.5 mm holes
Drill ø3.5 mm holes
Chamfer the holes
Chamfer the holes
MIDI IN label
MIDI IN label

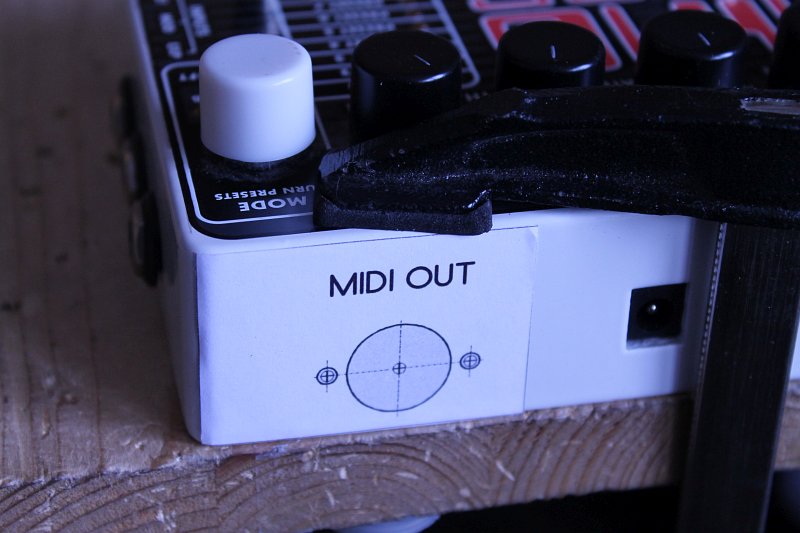

Prepare for MIDI OUT drilling
Prepare for MIDI OUT drilling
MIDI OUT holes
MIDI OUT holes
MIDI OUT label
MIDI OUT label
Drilling template
Drilling template
Drill ø3.5 mm holes
Drill ø3.5 mm holes
Screw up the MIDI module
Screw up the MIDI module
MIDI module is screwed up
MIDI module is screwed up
Close the lid
Close the lid


Related and similar products

MIDI module for EHX POG2
MIDI module for EHX POG2
65.00 USD
MIDI module for EHX Cathedral
MIDI module for EHX Cathedral
65.00 USD
MIDI module for EHX Ravish Sitar
MIDI module for EHX Ravish Sitar
65.00 USD

Question Question

Do you have any questions about this product?







MIDI Modules

Using our electronic MIDI modules, some guitar pedals can be controlled by Program Change or Control Change MIDI messages. The principle of operation is that the installed control MIDI module electronically simulates turning and pressing control knobs or encoders and replaces an activity which would have to be carried out during the guitar playing.

Install services

We also provide install services of the modules in our location in the Czech Republic (Central Europe). We also have our partners in the USA, Canada, Australia and France that are able to provide the install services for you. » See the list of our partners.
