MIDI module for EHX POG2 with Bypass MIDI module for build into the Electro Harmonix POG2 guitar effect with Bypass

Měna
MIDI module for EHX POG2 with Bypass
Category: MIDI Modules
Price: 85.00 USD
Quantity discounts:
Quantity Price
2 83.30 USD
3 82.45 USD
4 81.60 USD
5 80.75 USD
10 76.50 USD
20 72.25 USD
Quantity:

Supposed availability: 12 days

Weight: 0,080 kg

Order code: MPR-EHX-POG2-BP-MOD


This small electronic kit facilitates controlling POG2 using foot MIDI controller or from computer by DAW software. It controls programs changing and Bypass switching via MIDI.

MIDI module for Electro Harmonix POG2 guitar effect

Compared to the simplier variant of the module, this module has special circuits and electronically controlled footswitch moreover that replaces the original mechanical Bypass footswitch of the POG2 pedal. When it is replaced, it still works like the original Bypass footswitch even without MIDI control.

How it works

How to install the module

Parameters

Property Value
Target guitar effect: EHX POG2
Variant: module
Controled parameters: programs, bypass
Catalog
Detailed product information:
Microdesignum.cz > Products > MIDI Modules > MIDI Control for Electro Harmonix POG2


Photogallery Photogallery

Photogallery How to install MIDI module into POG2: 1) Control cables

15.03.2014

Make POG2 MIDI controllable using Microdesignum MIDI module in 60 minutes

Number of photos in the gallery: 10

Purchase the MIDI electronic kit for POG2 in our eshop
Purchase the MIDI electronic kit for POG2 in our eshop
Open the box
Open the box
POG2 is opened
POG2 is opened
Six soldering points
Six soldering points
The new versions of POG2 module have one more conductor for LED sensing
The new versions of POG2 module have one more conductor for LED sensing
Put more solder to the soldering points
Put more solder to the soldering points
Solder the six conductors
Solder the six conductors
Solder 9VDC and GND conductors to the soldering points.
Solder 9VDC and GND conductors to the soldering points.
Solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push
Solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push
Solder LED conductor near CN2A label (if you have the newer version of the module)
Solder LED conductor near CN2A label (if you have the newer version of the module)
Photogallery How to install MIDI module into POG2: 2) Bypass cables

01.03.2021

Number of photos in the gallery: 5

Screw the original bypass footswitch out.
Screw the original bypass footswitch out.
Simply cut the original footswitch out.
Simply cut the original footswitch out.
Solder the 6 conductors. The first is pad is square.
Solder the 6 conductors. The first is pad is square.
Insert the new footswitch with the first washer to the hole.
Insert the new footswitch with the first washer to the hole.
Tighten the nut with the second washer with a 14 mm wrench.
Tighten the nut with the second washer with a 14 mm wrench.
Photogallery How to install MIDI module into POG2: 3) MIDI connectors

01.03.2021

Number of photos in the gallery: 16

Self-adhesive labels
Self-adhesive labels
Self-adhesive label for MIDI IN
Self-adhesive label for MIDI IN
Self-adhesive label for MIDI OUT
Self-adhesive label for MIDI OUT
Secure attachment
Secure attachment
Predrill the 3 holes by ø1.5 - 2 mm drill
Predrill the 3 holes by ø1.5 - 2 mm drill
Drill the ø3.2 mm holes (can be ø3- 3.5 mm)
Drill the ø3.2 mm holes (can be ø3- 3.5 mm)
Use a step drill
Use a step drill
Drill the ø16 mm hole
Drill the ø16 mm hole
The ø16 mm hole is drilled
The ø16 mm hole is drilled
Peel off the sticker
Peel off the sticker
Chamfer the ø3.2 holes
Chamfer the ø3.2 holes

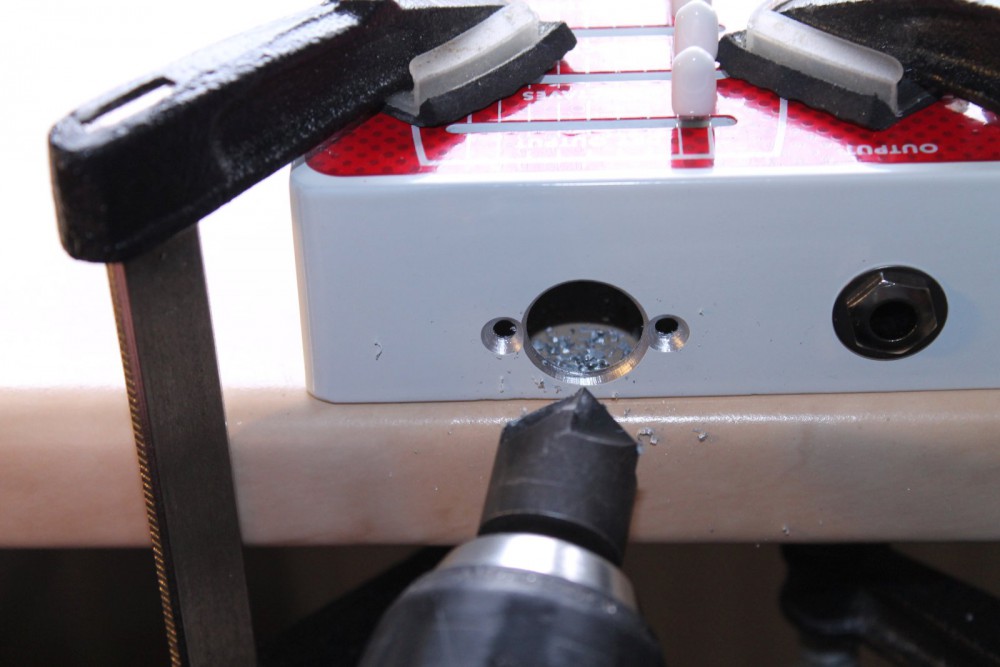

Optionally chamfer the ø16 holes
Optionally chamfer the ø16 holes
Affix the sticker with MIDI IN
Affix the sticker with MIDI IN
Affix the sticker with MIDI OUT
Affix the sticker with MIDI OUT
Screw the MIDI IN connector to the side of the Guitar In Jack
Screw the MIDI IN connector to the side of the Guitar In Jack
Screw the MIDI OUT connector to the side of the Effect Out Jack
Screw the MIDI OUT connector to the side of the Effect Out Jack
Photogallery How to install MIDI module into POG2: 4) Attach the module

01.03.2021

Number of photos in the gallery: 9

Attach the drilling template
Attach the drilling template
Mark 2 holes on the bottom lid using the drilling template
Mark 2 holes on the bottom lid using the drilling template
Drill ø1.5 mm holes first
Drill ø1.5 mm holes first
Then drill ø3.2 mm holes (can be ø3- 3.5 mm)
Then drill ø3.2 mm holes (can be ø3- 3.5 mm)
Screw the MIDI module to the bottom lid
Screw the MIDI module to the bottom lid
Close the box
Close the box
Screw the lid
Screw the lid
Affix the sticker with description
Affix the sticker with description
Enjoy controlling POG2 with your MIDI footswitch controller
Enjoy controlling POG2 with your MIDI footswitch controller
