MIDI module for TCE Nova Delay MIDI module for build into the TC Electronic ND-1 Nova Delay

Měna
MIDI module for TCE Nova Delay
Category: MIDI Modules
Price: 95.00 USD
Quantity:

Supposed availability: 5 days

Weight: 0,100 kg

Order code: MPR-TCE-ND1-MOD


This small electronic kit facilitates controlling Nova Delay using foot MIDI controller or from computer by DAW software.

MIDI module for TCE Nova Delay guitar pedal

By soldering only 6 wires of the MIDI module, the programs switching, On/Off and Tap tempo can be controlled via MIDI.

Parameters

Property Value
Target guitar effect: TCE Nova Delay
Variant: module
Controled parameters: programs, on/off, tap
Catalog
Detailed product information:
Microdesignum.cz > Products > MIDI Modules > MIDI Control for TC Electronic Nova Delay


Photogallery Photogallery

Photogallery How to install MIDI module into TCE Nova Delay

04.07.2019 13:00

Solder only 6 wires and make your TC Electronic Nova Delay guitar pedal MIDI-controllable in 30 minutes.

Number of photos in the gallery: 32

Purchase the MIDI module for TCE Nova Delay in our eshop.
Purchase the MIDI module for TCE Nova Delay in our eshop.
Open your Nova Delay pedal.
Open your Nova Delay pedal.
Fasten the top board of Nova Delay for better operation.
Fasten the top board of Nova Delay for better operation.
The top board should be fastened.
The top board should be fastened.
Put more solder on these soldering points.
Put more solder on these soldering points.

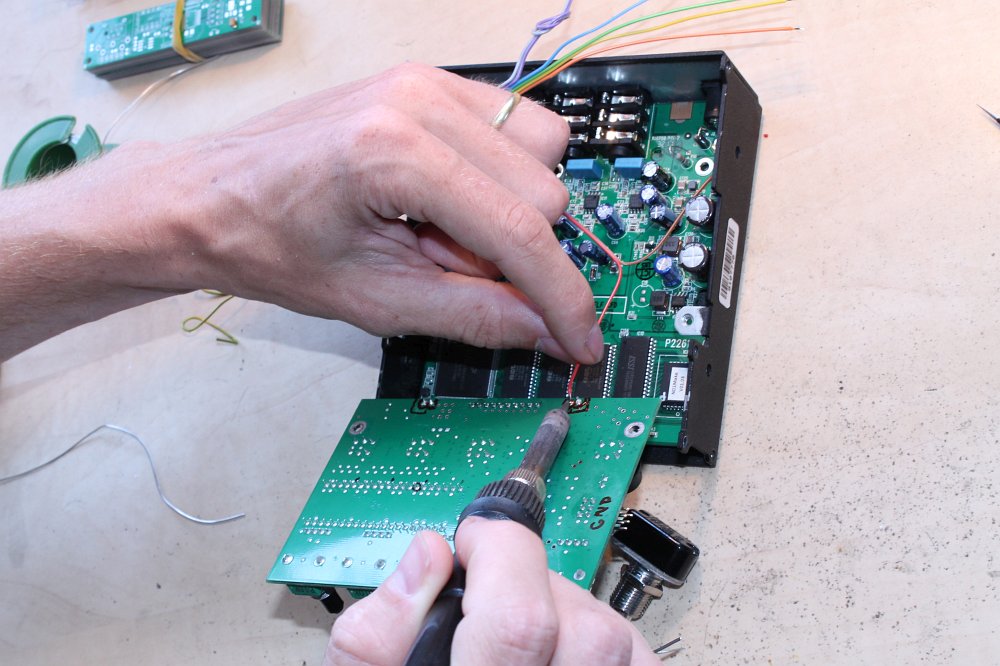

Put more solder here first and solder the brown wire - power supply for the MIDI module.
Put more solder here first and solder the brown wire - power supply for the MIDI module.
The brown wire is soldered.
The brown wire is soldered.
Solder the red wire - ground.
Solder the red wire - ground.
The red wire is soldered.
The red wire is soldered.
The brown and red power supply wires are soldered.
The brown and red power supply wires are soldered.
Solder the orange wire.
Solder the orange wire.
Solder carefully, the pads for red and orange wires are near themselves.
Solder carefully, the pads for red and orange wires are near themselves.
Solder the yellow wire.
Solder the yellow wire.
Put more solder here first. Solder the green wire to this left bottom pad of the transistor Q2 near the On/Off LED.
Put more solder here first. Solder the green wire to this left bottom pad of the transistor Q2 near the On/Off LED.
The green wire is soldered to this pad of the transistor Q2.
The green wire is soldered to this pad of the transistor Q2.
The blue wire will be on the 7th pad from right.
The blue wire will be on the 7th pad from right.
Solder the blue wire.
Solder the blue wire.
The blue wire is soldered.
The blue wire is soldered.
Unscrew this screw.
Unscrew this screw.
Screw this spacer (it is included).
Screw this spacer (it is included).
Screw the MIDI module.
Screw the MIDI module.
Connect the connector with just soldered cables.
Connect the connector with just soldered cables.
Screw the top panel of Nova Delay.
Screw the top panel of Nova Delay.
The MIDI module perfectly fits the only free space in the Nova Delay pedal.
The MIDI module perfectly fits the only free space in the Nova Delay pedal.
Set appropriate receiving MIDI channel.
Set appropriate receiving MIDI channel.

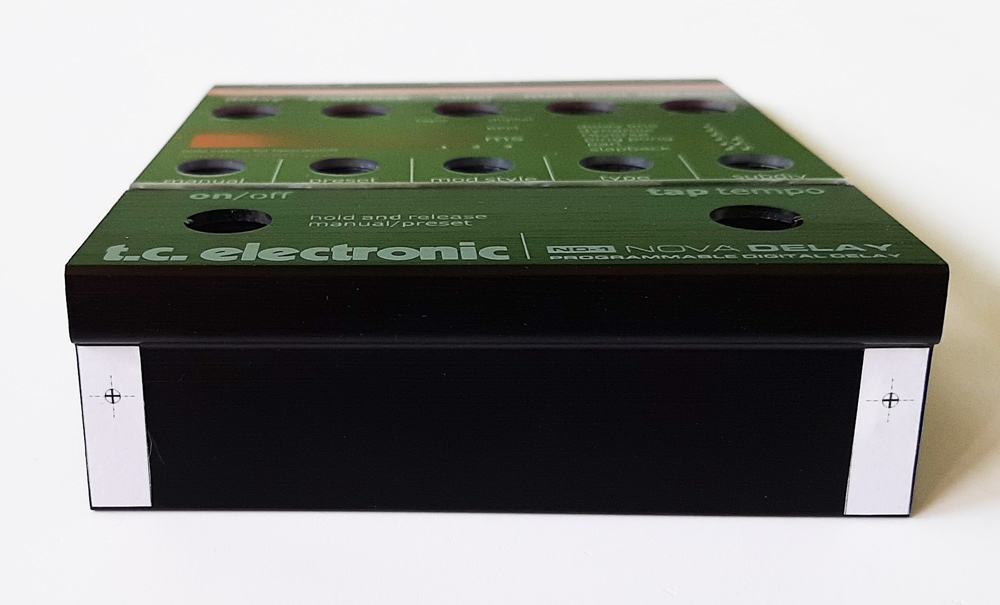

Stick drill templates for holes for MIDI cables. They are the same for both sides.
Stick drill templates for holes for MIDI cables. They are the same for both sides.
Predrill the holes by ⌀2.5 mm drill.
Predrill the holes by ⌀2.5 mm drill.
Drill the holes by ⌀5 mm drill.
Drill the holes by ⌀5 mm drill.
Mill or cut the bridges.
Mill or cut the bridges.
Remove the drilling templates.
Remove the drilling templates.
Close the box and stick the sticker with description.
Close the box and stick the sticker with description.
Enjoy your TCE Nova Delay with MIDI control.
Enjoy your TCE Nova Delay with MIDI control.
