MIDI module for EHX Talking Machine MIDI module for build into the Electro Harmonix Talking Machine guitar effect

Měna
MIDI module for EHX Talking Machine
Category: MIDI Modules
Price: 65.00 USD

Availability: temporarily unavailable

Automatic notification of the availabilityDo you want to be notified directly when the product is available? We will send you a report on this. Once the product is available, a message will be sent to you automatically and your e-mail will be deleted from our database. This registration does not commit you to buy this product.


Weight: 0,100 kg

Order code: MPR-EHX-TM-MOD


This small electronic kit facilitates controlling Talking Machine using foot MIDI controller or from computer by DAW software.

Parameters

Property Value
Target guitar effect: EHX Talking Machine
Variant: module
Controled parameters: programs only
Catalog
Detailed product information:
Microdesignum.cz > Products > MIDI Modules > MIDI Control for Electro Harmonix Talking Machine


Photogallery Photogallery

Photogallery How to install MIDI module into EHX Talking Machine

25.11.2019 10:00

Number of photos in the gallery: 27

Open the box
Open the box
Dismount SEND connector
Dismount SEND connector

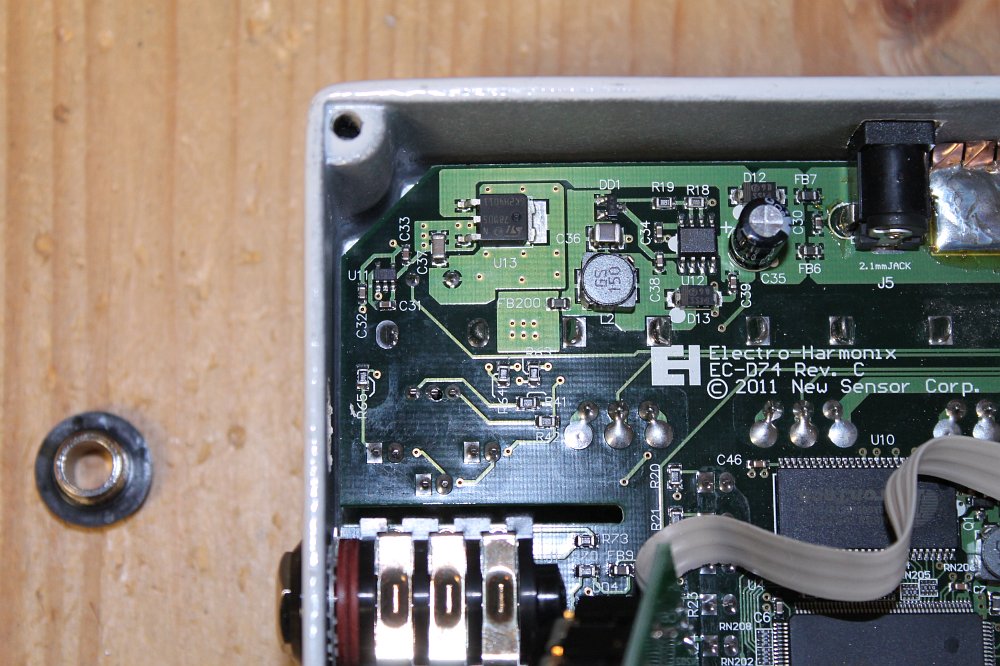

SEND connector dismounted
SEND connector dismounted
Here are soldering points: +9V, GND, Enc1, Enc2
Here are soldering points: +9V, GND, Enc1, Enc2
Here is soldering point: Sw
Here is soldering point: Sw
Solder 4 wires: +9V, GND, Sw1, Sw2
Solder 4 wires: +9V, GND, Sw1, Sw2
Solder Sw wire
Solder Sw wire
Get drilling templates (they are included in the package)
Get drilling templates (they are included in the package)
Drilling template MIDI IN
Drilling template MIDI IN
Drilling template MIDI OUT
Drilling template MIDI OUT

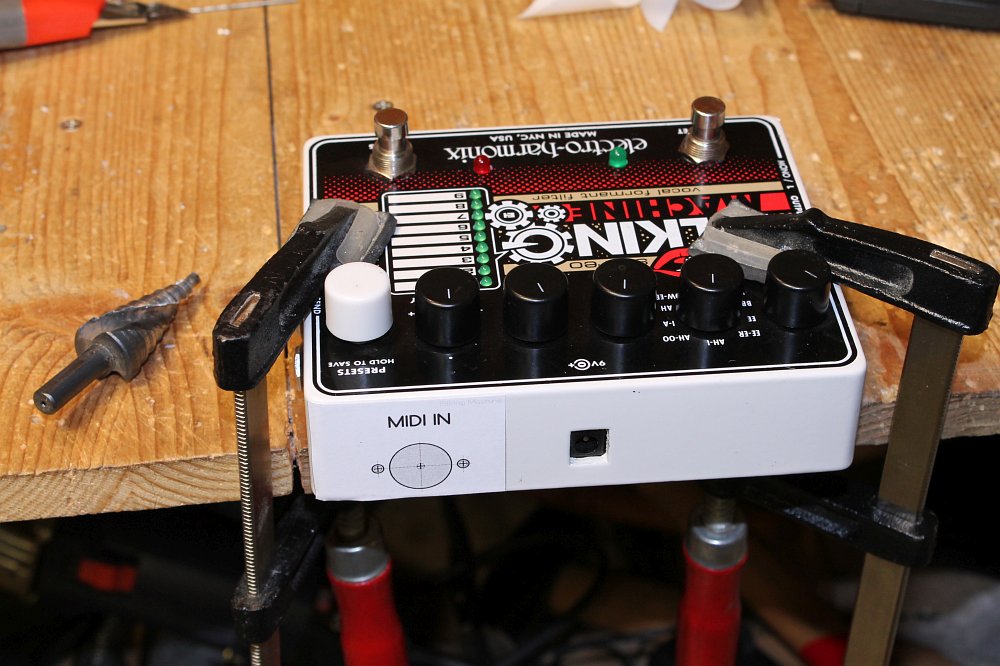

Prepare the pedal for drilling
Prepare the pedal for drilling
Predrill the holes with ⌀2.5 mm
Predrill the holes with ⌀2.5 mm

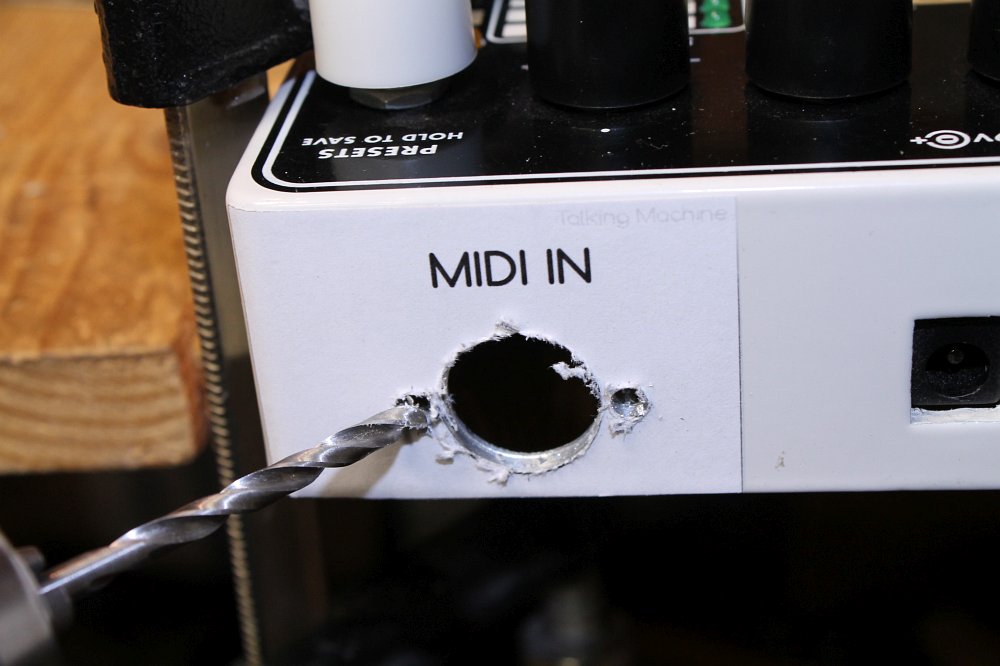

Drill ⌀16 mm
Drill ⌀16 mm
Finish small holes with ⌀3.5 mm
Finish small holes with ⌀3.5 mm
Optionally recess the small holes
Optionally recess the small holes
Predrill the holes with ⌀2.5 mm
Predrill the holes with ⌀2.5 mm
Optionally predrill the big hole with ⌀3.5 mm
Optionally predrill the big hole with ⌀3.5 mm
Drill ⌀16 mm
Drill ⌀16 mm
Finish small holes with ⌀3.5 mm
Finish small holes with ⌀3.5 mm
Optionally recess the small holes
Optionally recess the small holes
Screw MIDI IN socket
Screw MIDI IN socket
Screw MIDI OUT socket
Screw MIDI OUT socket
Paste the sticker with module description
Paste the sticker with module description
Predrill 4 holes on the bottom lid
Predrill 4 holes on the bottom lid
Optionally recess the holes
Optionally recess the holes
Screw the module
Screw the module
Close the bottom lid
Close the bottom lid
Question Question

Do you have any questions about this product?







MIDI Modules

Using our electronic MIDI modules, some guitar pedals can be controlled by Program Change or Control Change MIDI messages. The principle of operation is that the installed control MIDI module electronically simulates turning and pressing control knobs or encoders and replaces an activity which would have to be carried out during the guitar playing.

Install services

We also provide install services of the modules in our location in the Czech Republic (Central Europe). We also have our partners in the USA, Canada, Australia and France that are able to provide the install services for you. » See the list of our partners.
