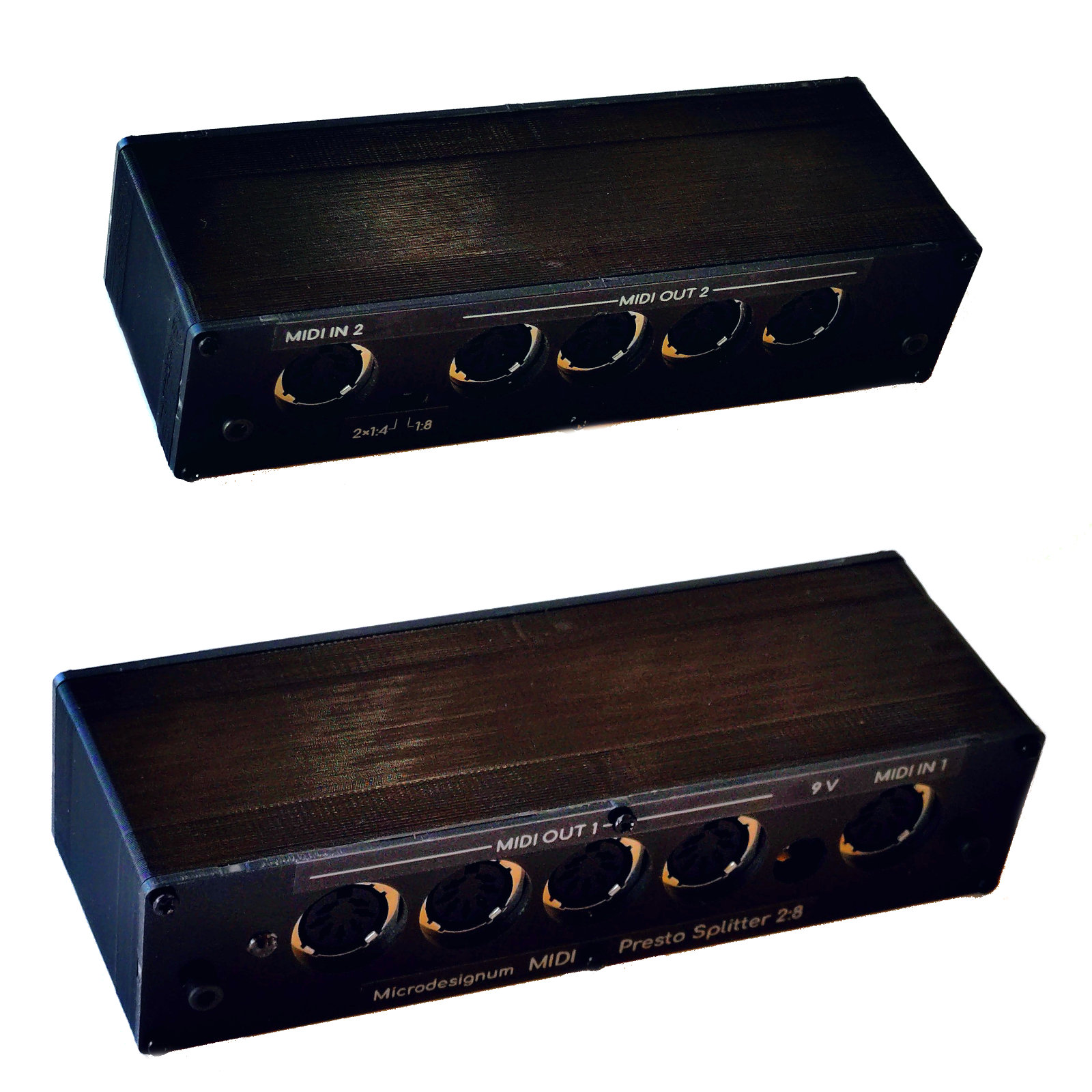

MIDI Presto Splitter 2:8 MIDI Thru box - splitter from one MIDI IN to 8 MIDI OUTs

This MIDI splitter (MIDI thru box) transmits MIDI data losslessly from MIDI input to MIDI outputs.

Switchabe configuration:

• 1 MIDI input to 8 MIDI outputs,
• or 2× 1 MIDI input to 4 MIDI outputs

Power supply: in range from 8 to 15 V, any polarity. A 9V DC power supply adapter is recommended and it is included for free for EU customers.

Dimensions: 184 × 30 × 50 mm

All connectors are DIN7, compatiblile with legacy DIN5 connectors. They provide phantom power supply on pins 6 and 7 moreover.

Parameters

Detailed product information:
