Put more solder to the soldering points

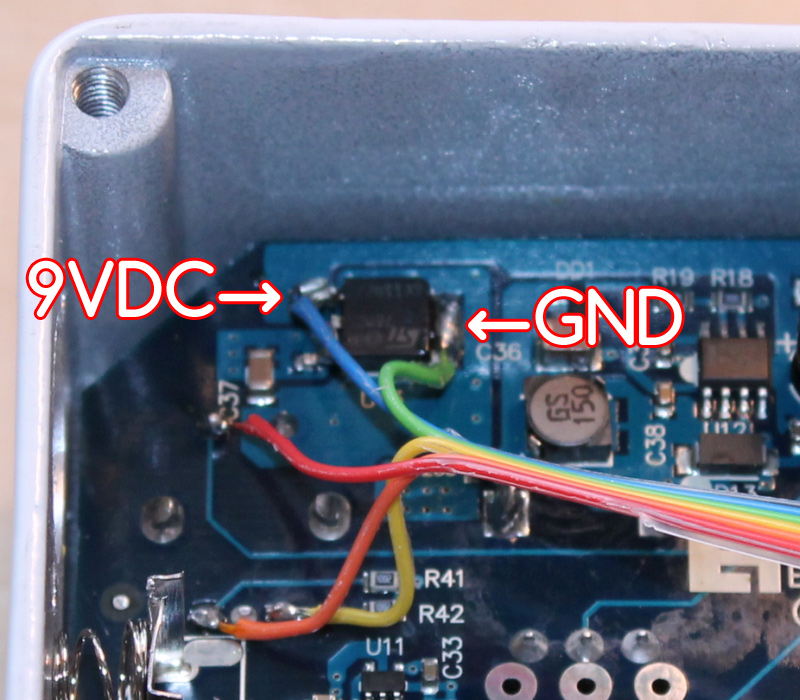

Regardless of the colors of the conductors, solder 9VDC and GND conductors near the voltage regulator.

Regardless of the colors of the conductors, solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push

Regardless of the colors of the conductors, solder 9VDC and GND conductors near the voltage regulator.

Photogallery: How to install MIDI module into EHX Cathedral Stereo Reverb
