Regardless of the colors of the conductors, solder 9VDC and GND conductors near the voltage regulator.

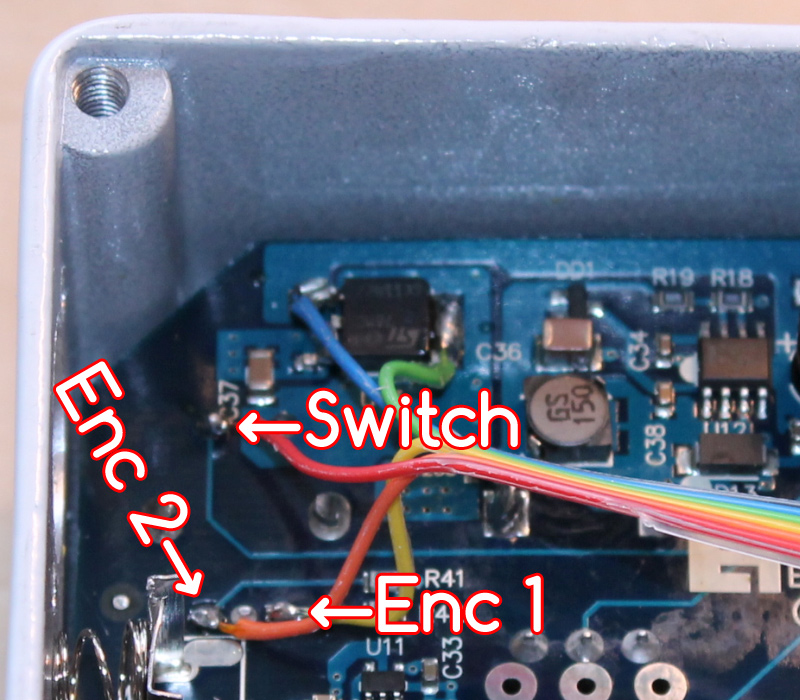

Regardless of the colors of the conductors, solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push

Regardless of the color of the conductors, solder the Tap conductor.

Regardless of the colors of the conductors, solder encoder conductors to the soldering points: Enc1, Enc2 - rotation, Switch: push

Photogallery: How to install MIDI module into EHX Cathedral Stereo Reverb
